Heavy duty 4-8 "C60 series
C60 Series

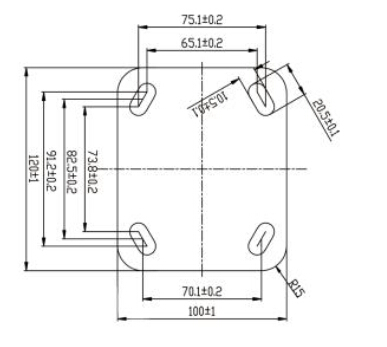

Plate TT Brake
Rotating
|
ART.NO..
|
|
|
|
|
|
Tread |
Frame |
STD Bearing |
Option Bearing |
Wheel Dia.(mm) | Offset(mm) | Mounting Height(mm) | Housing Thickness/Load | Cater Capacity(mm) | ||||||
Plate TT Brake | H-ZP03-10050GSUS304 | 4"100*50 | 29 | 144 | 5.5mm/800KG | 280 | PU | PP | Entity Steel ball |
1.Derlin+304Tube 2.SUS304 Entity bearing |
H-ZP03-12550GSUS304 | 5"125*50 | 33 | 167.5 | 300 | PU | |||||
H-ZP03-15050GSUS304 | 6"150*50 | 37.5 | 192 | 350 | PU | |||||
H-ZP03-20050GSUS304 | 8"200*50 | 47 | 242 | 400 | PU | |||||
H-ZP33-10050GSUS304 | 4"100*50 | 29 | 144 | 140 | TPR | |||||
H-ZP33-12550GSUS304 | 5"125*50 | 33 | 167.5 | 170 | TPR | |||||
H-ZP33-15050GSUS304 | 6"150*50 | 37.5 | 192 | 200 | TPR | |||||
H-ZP33-20050GSUS304 | 8"200*50 | 47 | 242 | 230 | TPR | |||||
H-ZP58-10050WSUS304 | 4"100*50 | 29 | 144 | 280 | PP | Steel Double ball | 1.440C Double ball 2.304 Double ball | |||
H-ZP58-12550WSUS304 | 5"125*50 | 33 | 167.5 | 300 | PP | |||||
H-ZP58-15050WSUS304 | 6"150*50 | 37.5 | 192 | 350 | PP | |||||
H-ZP58-20050WSUS304 | 8"200*50 | 47 | 242 | 400 | PP |
