Medium and heavy duty 4-8 inch C50 series
C50 Series
4"-8" SUS304 Heavy duty caster ,capacity 120-400kg
Patent No.ZL201720352226.7

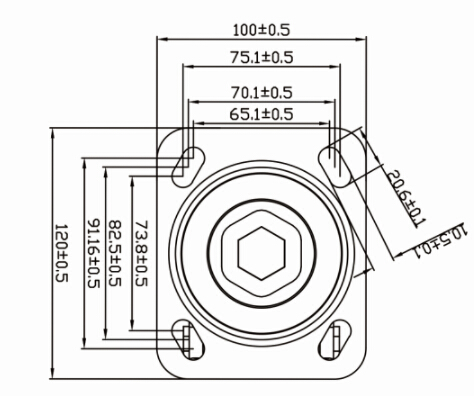

Plate/Housing thickness:SUS304,3.5mm
Wheel Type:PU，95±3 Shore A -30℃-70℃
TPR,80±Shore A -20℃-50℃
PP，85±Shore D -20℃-60℃
Bracket Capacity load：700KG/PC
Plate/Housing thickness:SUS304,3.5mm
Wheel Type:PU，95±3 Shore A -30℃-70℃
TPR,80±Shore A -20℃-50℃
PP，85±Shore D -20℃-60℃
Bracket Capacity load：700KG/PC
Plate TT Brake
|
Rotating
|
ART.NO..
|
|
|
|
|
|
Tread |
Frame |
STD Bearing |
Option Bearing |
| Wheel Dia.（mm） | Offset（mm） | Mounting Height（mm） | Housing Thickness/Load | Cater Capacity（mm） | ||||||
| Plate TT Brake | MD-ZP03-10050GSUS304 | 4"100*50 | 38.5 | 142.5 | 3.5mm/700KG | 280 | PU | PP | Entity Steel ball |
1.Derlin+304Tube 2.SUS304 Entity bearing |
| MD-ZP03-12550GSUS304 | 5"125*50 | 36.5 | 170 | 300 | PU | |||||
| MD-ZP03-15050GSUS304 | 6"150*50 | 39 | 190 | 350 | PU | |||||
| MD-ZP03-20050GSUS304 | 8"200*50 | 38.5 | 243 | 400 | PU | |||||
| MD-ZP33-10050GSUS304 | 4"100*50 | 38.5 | 142.5 | 140 | TPR | |||||
| MD-ZP33-12550GSUS304 | 5"125*50 | 36.5 | 171 | 170 | TPR | |||||
| MD-ZP33-15050GSUS304 | 6"150*50 | 39 | 190 | 200 | TPR | |||||
| MD-ZP33-20050GSUS304 | 8"200*50 | 38.5 | 243 | 230 | TPR | |||||
| MD-ZP58-10050WSUS304 | 4"100*50 | 38.5 | 142.5 | 280 | PP | Steel Double ball | 1.440C Double ball 2.304 Double ball | |||
| MD-ZP58-12550WSUS304 | 5"125*50 | 36.5 | 171 | 300 | PP | |||||
| MD-ZP58-15050WSUS304 | 6"150*50 | 39 | 190 | 350 | PP | |||||
| MD-ZP58-20050WSUS304 | 8"200*50 | 38.5 | 243 | 400 | PP |
