Medium 2-inch C16 series
C16 Series
2"SUS304 Medium duty caster,Capacity 50Kg
Housing:SUS304,2.5mm,
Wheel Type:PU,90±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreA -20℃-60℃
Wheel bearings:Derlin Bush,Stainless steel bearing on request.
Housing:SUS304,2.5mm,
Wheel Type:PU,90±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreA -20℃-60℃
Wheel bearings:Derlin Bush,Stainless steel bearing on request.
|
Rotating
|
ART.NO..
|
|
|
|
|
|
|
Tread |
Frame |
STD Bearing | Option Bearing |
|
Wheel Dim.(mm)
|
Offset（mm） | Mounting Height（mm） | Bolt hote（mm） | Housing Thickness/Load（mm） | Caster Capacity（kg） | ||||||

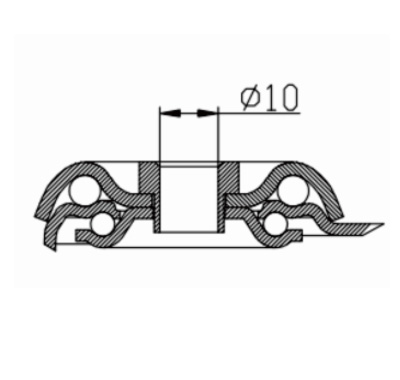

| Swivel with Bolt hole | M-WH58-5025WSUS304 | 2”/50*25 | 29.5 | 73.5 | ∅10 | 2.5mm/80kg | 40 | PP | PP | Steel Double bail 双轴6000 | 1.Derlin+304 Tube/Teling's 4th digit changed to 6 2.440C Double bail Change the 4th digit of double shaft 440c-6000 to B 3.SUS304 Double bail Double axis 304-6000 4th digit changed to s |
| M-WH02-5025WSUS304 | Grey PU | 440C stainless steel | |||||||||
| M-WH08-5025WSUS304 | Grey PU | S304 stainless steel | |||||||||
| TT Brake with Bolt hole | M-ZH58-5025WSUS304 | PP | Steel Double bail 双轴6000 | ||||||||
| M-ZH02-5025WSUS304 | Grey PU | 440C stainless steel | |||||||||
| M-ZH08-5025WSUS304 | Grey PU | S304 stainless steel |
