Medium 2.5-inch C17 series
C17 Series
2.5"SUS304 Medium-duty caster,Capacity 40-90Kg
Housing:SUS304,3.0mm
Housing Thickness:SUS304,2.5mm
Wheel Type:PU,90±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreA -20℃-60℃
Wheel bearings:Derlin Bush,Stainless steel bearing on request.
Housing:SUS304,3.0mm
Housing Thickness:SUS304,2.5mm
Wheel Type:PU,90±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreA -20℃-60℃
Wheel bearings:Derlin Bush,Stainless steel bearing on request.
|
Rotating
|
ART.NO..
|
|
|
|
|
|
|
Tread |
Frame |
STD Bearing | Option Bearing |
|
Wheel Dim.(mm)
|
Offset（mm） | Mounting Height（mm） | Bolt hole（mm） | Housing Thickness/Load （mm） | Caster Capacity（kg） | ||||||

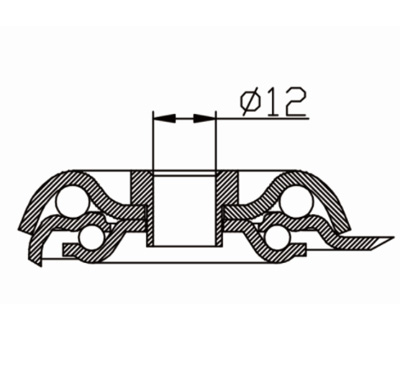

| Swivel with Bolt hole | M-WH58-6331WSUS304 | 2”/50*25 | 36.5 | 91.5 | ∅12 | 2.5mm/80kg | 80 | PP | PP | Steel Double bail Double shaft 6001 | 1.Derlin+304 Tube/Teling's 4th digit changed to 6 2.440C Double bail Change the 4th digit of double shaft 440c-6001 to B 3.SUS304 Double bail Double axis 304-6001 4th digit changed to s |
| M-WH08-6331WSUS304 | 2”/50*25 | 80 | PU | PP | |||||||
| M-WH38-6331WSUS304 | 2”/50*25 | 60 | TPR | PP | |||||||
| TT Brake with Bolt hole | M-ZH58-6331WSUS304 | 2”/50*25 | 35 | 80 | PP | PP | |||||
| M-ZH08-6331WSUS304 | 2”/50*25 | 80 | PU | PP | |||||||
| M-ZH38-6331WSUS304 | 2”/50*25 | 60 | TPR | PP |
