Medium 2.5-inch C17 series
C17 Series
2.5"SUS304 Medium-duty caster,Capacity 40-90Kg
Housing:SUS304,3.0mm
Housing Thickness:SUS304,2.5mm
Wheel Type:PU,90±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreA -20℃-60℃
Wheel bearings:Derlin Bush,Stainless steel bearing on request.
Housing:SUS304,3.0mm
Housing Thickness:SUS304,2.5mm
Wheel Type:PU,90±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreA -20℃-60℃
Wheel bearings:Derlin Bush,Stainless steel bearing on request.
|
Rotating
|
ART.NO..
|
|
|
|
|
|
|
Tread |
Frame |
STD Bearing | Option Bearing |
|
Wheel Dim.(mm)
|
Offset（mm） | Mounting Height（mm） | Thread stem（mm） | Housing Thickness/Load（mm） | Caster Capacity（kg） | ||||||

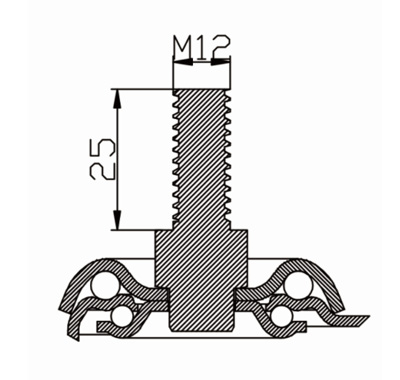

| Swivel with Thread stem | M-WL58-6331WSUS304 | 2.5”/63*31 | 36.5 | 95 | M12*25 | 2.5mm/80kg | 80 | PP | PP | Steel Double bail Double shaft 6001 | 1.Derlin+304 Tube/Teling's 4th digit changed to 6 2.440C Double bail Change the 4th digit of double shaft 440c-6001 to B 3.SUS304 Double bail Double axis 304-6001 4th digit changed to s |
| M-WL08-6331WSUS304 | 80 | PU | |||||||||
| M-WL38-6331WSUS304 | 60 | TPR | |||||||||
| TT Brake with Thread stem | M-ZL58-6331WSUS304 | 35 | 80 | PP | |||||||
| M-ZL08-6331WSUS304 | 80 | PU | |||||||||
| M-ZL38-6331WSUS304 | 60 | TPR |
