Medium 3-inch C18 series
C18 Series
3"SUS304 Medium-duty caster,Capacity 50-100Kg
Housing:SUS304,3.0mm/2.5mm
Wheel Type:PU,92±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreA -20℃-60℃
Fiberglass+PA，-35℃-200℃
Wheel bearings:Single bearing6002，Double bearings 6001
Bearing material：Stainless steel 440C/SUS304/Derlin on option
Housing:SUS304,3.0mm/2.5mm
Wheel Type:PU,92±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreA -20℃-60℃
Fiberglass+PA，-35℃-200℃
Wheel bearings:Single bearing6002，Double bearings 6001
Bearing material：Stainless steel 440C/SUS304/Derlin on option
|
Rotating
|
ART.NO..
|
|
|
|
|
|
|
Tread |
Frame |
STD Bearing | Option Bearing |
|
Wheel Dim.(mm)
|
Offset（mm） | Mounting Height（mm） | Bolt hote（mm） | Housing Thickness/Load（mm） | Caster Capacity（kg） | ||||||

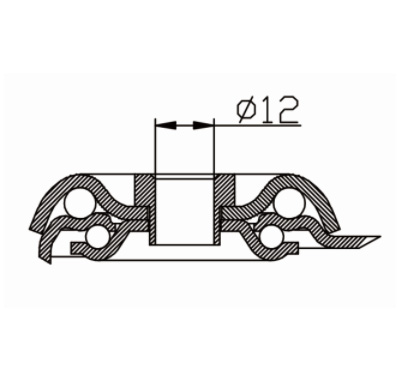

| Swivel with Bolt hole | M-WH02-7531GSUS304 | 3”/75*31 | 35.5 | 106.5 | ∅12 | 2.5mm/80kg | 100 | PP | PP | Steel Double bail Single shaft 6002 | 1.Derlin+304 Tube/Teling's 4th digit changed to 6 2.440C Double bail Change the 4th digit of double shaft 440c-6001 to B 3.SUS304 Double bail Double axis 304-6001 4th digit changed to s 4.SUS304 Double bail Single axis 304-6002 4th digit changed to C |
| M-WH32-7531GSUS304 | 80 | TPR | PP | ||||||||
| M-WH08-7531GSUS304 | 100 | PU | PP | Steel Double bail Double shaft 6001 | |||||||
| M-WH58-7531GSUS304 | 100 | PP | PP | ||||||||
| M-WH38-7531GSUS304 | 80 | TPR | PP | ||||||||
| M-WHFH-7533GSUS304 | 3”/75*33 | 100 | Fiberglass+PA | Fiberglass+PA | Hi-temp steel double ball High temperature double shaft 6001 | / | |||||
| TT Brake with Bolt hole | M-ZH02-7531GSUS304 | 3”/75*31 | 35 | 100 | PU | PP | Steel Double bail Single shaft 6002 | 1.Derlin+304 Tube/Teling's 4th digit changed to 6 2.440C Double bail Change the 4th digit of double shaft 440c-6001 to B 3.SUS304 Double bail Double axis 304-6001 4th digit changed to s 4.SUS304 Double bail Single axis 304-6002 4th digit changed to C | |||
| M-ZH32-7531GSUS304 | 80 | TPR | PP | ||||||||
| M-ZH08-7531GSUS304 | 100 | PU | PP | Steel Double bail Double shaft 6001 | |||||||
| M-ZH58-7531GSUS304 | 100 | PP | PP | ||||||||
| M-ZH38-7531GSUS304 | 80 | TPR | PP | ||||||||
| M-ZHFH-7533GSUS304 | 3”/75*33 | 100 | Fiberglass+PA | Fiberglass+PA | Hi-temp steel double ball High temperature double shaft 6001 | / |
