40-Rubber base

Basic base series


CE/RoHS certification approved for product
Aluminium alloy diecast housing with back support to enhance the pressure resistance
High-quality NER rubber used in leveling adjust base,improve the function of anti-corrision and anti-vibration
Economic Choose width High-quality PP base,improve the function of capacity and reduce the cost.
Stainless steel ball raceway to enhance the stress-resistance.
Aluminum profiles or pipe joint system\Semiconductor\Precision measuremnt\ATM\Work station etc.
Working Temp.:-10℃ to 60℃
item Load/4PCS/kg Load/PC/Kg Housing Material Wheel material Base material Surface treatment Wheel Dia./mm Tread Width/mm Surface Treatment
Total wheel height Adjust height plate size Installation dimension of base plate Installation dimension of screw rod

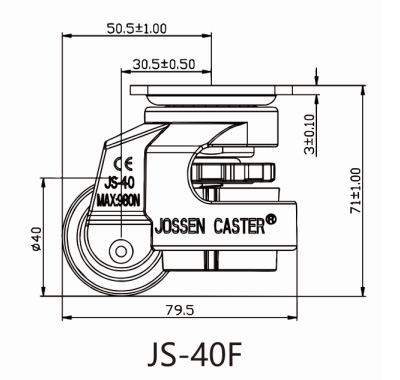

JS-40F 100 50 AL PA NBR+AL Spray 40 18.5 71 8 63.5*63.5*3.0 42*42   Green Spray Powder
JS-40S 100 50 AL PA NBR+AL Spray 40 18.5 71 8     M8*25
JS-40FD 100 50 AL PA NBR+AL Spray 40 18.5 71 8 63.5*63.5*3.0 49*49
JS-60F 500 250 AL PA NBR+AL Spray 52 23.5 84 10 73.5*73.5*5.0 57.5*57.5
JS-40S 500 250 AL PA NBR+AL Spray 52 23.5 84 10     M12*25
JS-80F 1000 500 AL PA NBR+AL Spray 62 27 102 15 90*90*5.0 70*70
JS-80S 1000 500 AL PA NBR+AL Spray 62 27 102 15     M12*25
JS-100F 1500 750 AL PA NBR+AL Spray 74 29 122 15 95*95*6.0 70*70
JS-100S 1500 750 AL PA NBR+AL Spray 74 29 122 15     M16*25
JS-120F 2000 1000 AL PA PA6 Spray 74 29 122 15 95*95*6.0 70*70
JS-120S 2000 1000 AL PA PA6 Spray 74 29 122 15     M16*25
JS-150F 3000 1500 AL PA AL Spray 95 51 131.5 15 100*100*11.5 70*70
