80-PP-Base
PP Base
CE/RoHS certification approved for product
Aluminium alloy diecast housing with back support to enhance the pressure resistance
High-quality NER rubber used in leveling adjust base，improve the function of anti-corrision and anti-vibration
Economic Choose width High-quality PP base，improve the function of capacity and reduce the cost.
Stainless steel ball raceway to enhance the stress-resistance.
Aluminum profiles or pipe joint system\Semiconductor\Precision measuremnt\ATM\Work station etc.
Working Temp.:-10℃ to 60℃
| item | Load/4PCS/kg | Load/PC/Kg | Housing Material | Wheel material | Base material | Surface treatment | Wheel Dia./mm | Tread Width/mm |
|
|
|
|
|
Surface Treatment |
| Total wheel height | Adjust height | plate size | Installation dimension of base plate | Installation dimension of screw rod | ||||||||||
| JS-40F-P | 100 | 50 | AL | PA | PP | Spray | 40 | 18.5 | 71 | 8 | 63.5*63.5*3.0 | 42*42 | Electro-phoresis | |
| JS-40S-P | 100 | 50 | AL | PA | PP | Spray | 40 | 18.5 | 71 | 8 | M8*25 | |||
| JS-60F-P | 500 | 250 | AL | PA | PP | Spray | 52 | 23.5 | 84 | 10 | 73.5*73.5*5.0 | 57.5*57.5 | ||
| JS-60S-P | 500 | 250 | AL | PA | PP | Spray | 52 | 23.5 | 84 | 10 | M12*25 | |||
| JS-80F-P | 1000 | 500 | AL | PA | PP | Spray | 62 | 27 | 102 | 15 | 90*90*5.0 | 70*70 | ||

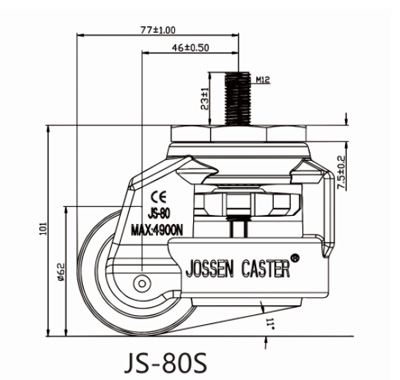

| JS-80S-P | 1000 | 500 | AL | PA | PP | Spray | 62 | 27 | 102 | 15 | M12*25 | |||
| JS-100F-P | 1500 | 750 | AL | PA | PP | Spray | 74 | 29 | 122 | 15 | 95*95*6.0 | 70*70 | ||
| JS-100S-P | 1500 | 750 | AL | PA | PP | Spray | 74 | 29 | 122 | 15 | M16*25 |
