120-Nylon base
Basic base series
CE/RoHS certification approved for product
Aluminium alloy diecast housing with back support to enhance the pressure resistance
High-quality NER rubber used in leveling adjust base，improve the function of anti-corrision and anti-vibration
Economic Choose width High-quality NYlon base，improve the function of capacity and reduce the cost.
Stainless steel ball raceway to enhance the stress-resistance.
Aluminum profiles or pipe joint system\Semiconductor\Precision measuremnt\ATM\Work station etc.
Working Temp.:-10℃ to 60℃
| item | Load/4PCS/kg | Load/PC/Kg | Housing Material | Wheel material | Base material | Surface treatment | Wheel Dia./mm | Tread Width/mm |
|
|
|
|
|
Surface Treatment |
| Total wheel height | Adjust height | plate size | Installation dimension of base plate | Installation dimension of screw rod | ||||||||||
| JS-40F | 100 | 50 | AL | PA | NBR+AL | Spray | 40 | 18.5 | 71 | 8 | 63.5*63.5*3.0 | 42*42 | Green Spray Powder | |
| JS-40S | 100 | 50 | AL | PA | NBR+AL | Spray | 40 | 18.5 | 71 | 8 | M8*25 | |||
| JS-40FD | 100 | 50 | AL | PA | NBR+AL | Spray | 40 | 18.5 | 71 | 8 | 63.5*63.5*3.0 | 49*49 | ||
| JS-60F | 500 | 250 | AL | PA | NBR+AL | Spray | 52 | 23.5 | 84 | 10 | 73.5*73.5*5.0 | 57.5*57.5 | ||
| JS-40S | 500 | 250 | AL | PA | NBR+AL | Spray | 52 | 23.5 | 84 | 10 | M12*25 | |||
| JS-80F | 1000 | 500 | AL | PA | NBR+AL | Spray | 62 | 27 | 102 | 15 | 90*90*5.0 | 70*70 | ||
| JS-80S | 1000 | 500 | AL | PA | NBR+AL | Spray | 62 | 27 | 102 | 15 | M12*25 | |||
| JS-100F | 1500 | 750 | AL | PA | NBR+AL | Spray | 74 | 29 | 122 | 15 | 95*95*6.0 | 70*70 | ||
| JS-100S | 1500 | 750 | AL | PA | NBR+AL | Spray | 74 | 29 | 122 | 15 | M16*25 | |||
| JS-120F | 2000 | 1000 | AL | PA | PA6 | Spray | 74 | 29 | 122 | 15 | 95*95*6.0 | 70*70 | ||

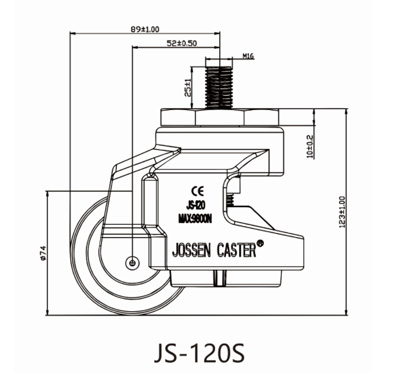

| JS-120S | 2000 | 1000 | AL | PA | PA6 | Spray | 74 | 29 | 122 | 15 | M16*25 | |||
| JS-150F | 3000 | 1500 | AL | PA | AL | Spray | 95 | 51 | 131.5 | 15 | 100*100*11.5 | 70*70 |
