Medium 4-inch C19 Series
C19 Series
Rotating
|
ART.NO..
|
|
|
|
|
|
|
Tread |
Frame |
STD Bearing | Option Bearing |
Wheel Dim.(mm)
|
Offset(mm) | Mounting Height(mm) | Bolt hole(mm) | Housing Thickness/Load(mm) | Caster Capacity(kg) | ||||||

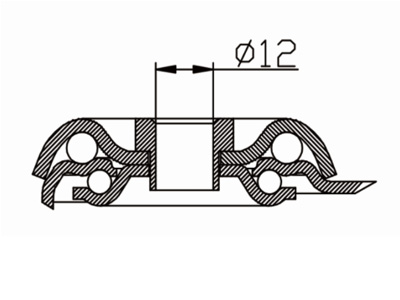

Swivel with Bolt hole | M-WH02-10031GSUS304 | 4”/100*31 | 32 | 130 | ø12 | 2.5mm/100kg | 100 | PP | PP | Steel Double bail 单轴6002 | 1.Derlin+304 Tube/特尔灵 第4位数字改成6 2.440C Double bail 双轴 440C-6001 第4位数字改成B 3.SUS304 Double bail 双轴 304-6001 第4位数字改成S 4.SUS304 Double bail 单轴 304-6002 第4位数字改成C |
M-WH32-10031GSUS304 | 80 | TPR | PP | ||||||||
M-WH08-10031GSUS304 | 100 | PU | PP | Steel Double bail 双轴6001 | |||||||
M-WH58-10031GSUS304 | 100 | PP | PP | ||||||||
M-WH38-10031GSUS304 | 80 | TPR | PP | ||||||||
M-WHFH-10033GSUS304 | 4”/100*33 | 100 | Fiberglass+PA | Fiberglass+PA | Hi-temp steel double ball 高温双轴6001 | / | |||||
TT Brake with Bolt hole | M-ZH02-10031GSUS304 | 4”/100*31 | 30 | 130 | ø12 | 2.5mm/100kg | 100 | PU | PP | Steel Double bail 单轴6002 | 1.Derlin+304 Tube/特尔灵 第4位数字改成6 2.440C Double bail 双轴 440C-6001 第4位数字改成B 3.SUS304 Double bail 双轴 304-6001 第4位数字改成S 4.SUS304 Double bail 单轴 304-6002 第4位数字改成C |
M-ZH32-10031GSUS304 | 80 | TPR | PP | ||||||||
M-ZH08-10031GSUS304 | 100 | PU | PP | Steel Double bail 双轴6001 | |||||||
M-ZH58-10031GSUS304 | 100 | PP | PP | ||||||||
M-Z38-10031GSUS304 | 80 | TPR | PP | ||||||||
M-ZHFH--10033GSUS304 | 4”/100*33 | 100 | Fiberglass+PA | Fiberglass+PA | Hi-temp steel double ball 高温双轴6001 | / |
