Medium 5-inch C20 Series
C20 Series
5" SUS304 Medium-duty caster,Capacity70-120Kg
Housing:SUS304,3.0mm
Wheel Type:PU,92±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreD -20℃-60℃
Fiberglass+PA,-35℃-200℃
Wheel bearings:Single bearing6001, Double bearings6001
Bearing material:Stainless steel 440C440C/SUS304/Derlin on option
Housing:SUS304,3.0mm
Wheel Type:PU,92±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreD -20℃-60℃
Fiberglass+PA,-35℃-200℃
Wheel bearings:Single bearing6001, Double bearings6001
Bearing material:Stainless steel 440C440C/SUS304/Derlin on option
|
Rotating
|
ART.NO..
|
|
|
|
|
|
|
Tread |
Frame |
STD Bearing | Option Bearing |
|
Wheel Dim.(mm)
|

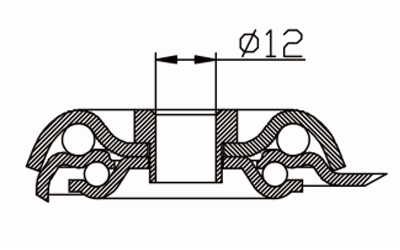

Offset(mm) | Mounting Height(mm) | Bolt hole(mm) | Housing Thickness/Load(mm) | Caster Capacity(kg) | ||||||
| Swivel with Bolt hole | M-WH02-12531GSUS304 | 5"/125*31 | 31 | 159 | ø12 | 2.5mm/110kg | 110 | PP | PP | Steel Double bail 单轴6002 | 1.Derlin+304 Tube/特尔灵 第4位数字改成6 2.440C Double bail 双轴 440C-6001 第4位数字改成B 3.SUS304 Double bail 双轴 304-6001 第4位数字改成S 4.SUS304 Double bail 单轴 304-6002 第4位数字改成C |
| M-WH32-12531GSUS304 | 90 | TPR | PP | ||||||||
| M-WH08-12531GSUS304 | 110 | PU | PP | Steel Double bail 双轴6001 | |||||||
| M-WH58-12531GSUS304 | 110 | PP | PP | ||||||||
| M-WH38-12531GSUS304 | 90 | TPR | PP | ||||||||
| M-WHFH-12533GSUS304 | 5"/125*33 | 110 | Fiberglass+PA | Fiberglass+PA | Hi-temp steel double ball 高温双轴6001 | / | |||||
| TT Brake with Bolt hole | M-ZH02-12531GSUS304 | 5"/125*31 | 36 | 159 | ø12 | 2.5mm/110kg | 110 | PU | PP | Steel Double bail 单轴6002 | 1.Derlin+304 Tube/特尔灵 第4位数字改成6 2.440C Double bail 双轴 440C-6001 第4位数字改成B 3.SUS304 Double bail 双轴 304-6001 第4位数字改成S 4.SUS304 Double bail 单轴 304-6002 第4位数字改成C |
| M-ZH32-12531GSUS304 | 90 | TPR | PP | ||||||||
| M-ZH08-12531GSUS304 | 110 | PU | PP | Steel Double bail 双轴6001 | |||||||
| M-ZH58-12531GSUS304 | 110 | PP | PP | ||||||||
| M-Z38-12531GSUS304 | 90 | TPR | PP | ||||||||
| M-ZHFH--12533GSUS304 | 5"/125*33 | 110 | Fiberglass+PA | Fiberglass+PA | Hi-temp steel double ball 高温双轴6001 | / |
