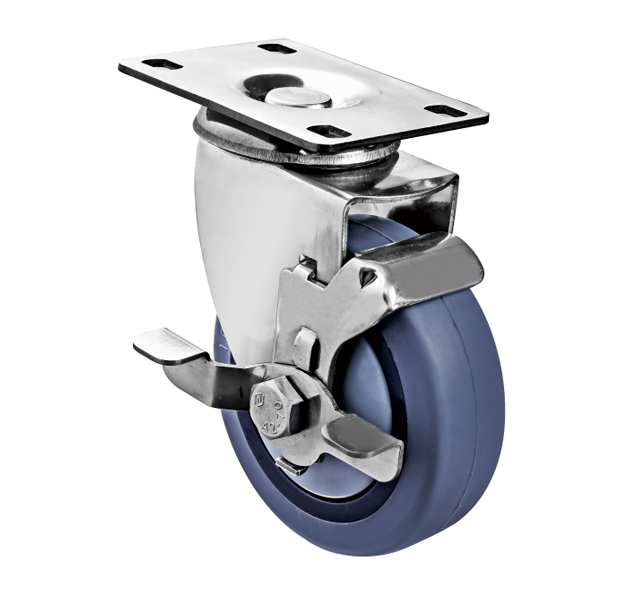

Medium 3-5-inch Side Brake C26 Series
C26 Series
3-5" SUS304 Medium-duty caster, Side Brake, Capacity70-120Kg
Housing:SUS304,3.0mm
Wheel Type:PU,92±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreD -20℃-60℃
Fiberglass+PA,-35℃-200℃
Wheel bearings:Single bearing6001, Double bearings6001
Housing:SUS304,3.0mm
Wheel Type:PU,92±3 ShoreA -30℃-70℃
TPR,80±3 ShoreA -20℃-50℃
PP,85±3 ShoreD -20℃-60℃
Fiberglass+PA,-35℃-200℃
Wheel bearings:Single bearing6001, Double bearings6001
|
Rotating
|
ART.NO..
|
|
|
|
|
|
Tread |
Frame |
STD Bearing | Option Bearing |
|
WPeel Dim.(mm)
|
Offset(mm) | Mounting Height(mm) | Housing Thickness/Load(mm) | Caster Capacity(kg) | ||||||
| Plate Side Brake | M-SP02-7531GSUS304 | 3" /75*31 | 35.5 | 108.5 | 2.5mm/170kg | 100 | PU | PP | Steel Single bail 单轴6002 | 1.Derlin+304 Tube/特尔灵 第4位数字改成6 2.440C Double bail 双轴 440C-6001 第4位数字改成B 3.SUS304 Double bail 双轴 304-6001 第4位数字改成S 4.SUS304 Double bail 单轴 304-6002 第4位数字改成C |
| M-SP02-10031GSUS304 | 4" /100*31 | 32 | 132 | 110 | PU | |||||
| M-SP02-12531GSUS304 | 5" /125*31 | 31 | 161 | 120 | PU | |||||
| M-SP32-7531GSUS304 | 3" /75*31 | 35.5 | 108.5 | 80 | TPR | |||||
| M-SP32-10031GSUS304 | 4" /100*31 | 32 | 132 | 90 | TPR | |||||
| M-SP32-12531GSUS304 | 5" /125*31 | 31 | 161 | 100 | TPR | |||||
| M-SP08-7531GSUS304 | 3" /75*31 | 35.5 | 108.5 | 100 | PU | Steel Double bail 双轴6001 | ||||
| M-SP08-10031GSUS304 | 4" /100*31 | 32 | 132 | 110 | PU | |||||
| M-SP08-12531GSUS304 | 5" /125*31 | 31 | 161 | 120 | PU | |||||
| M-SP38-7531GSUS304 | 3" /75*31 | 35.5 | 108.5 | 80 | TPR | |||||
| M-SP38-10031GSUS304 | 4" /100*31 | 32 | 132 | 90 | TPR | |||||
| M-SP38-12531GSUS304 | 5" /125*31 | 31 | 161 | 100 | TPR | |||||
| M-SP58-7531GSUS304 | 3" /75*31 | 35.5 | 108.5 | 100 | TPR | |||||
| M-SP58-10031GSUS304 | 4" /100*31 | 32 | 132 | 110 | TPR | |||||
| M-SP58-12531GSUS304 | 5" /125*31 | 31 | 161 | 120 | TPR | |||||
| M-SPFH-7531GSUS304 | 3" /75*33 | 35.5 | 108.5 | 100 | Fiberglass+PA | Fiberglass+PA | Hi-temp steel double ball 高温双轴6001 | / | ||
| M-SPFH-10031GSUS304 | 4" /100*33 | 32 | 132 | 110 | ||||||
| M-SPFH-12531GSUS304 | 5" /125*33 | 31 | 161 | 120 |
