Ultra-Heavy 5-12-inch C80 Series
C80 Series
SUS304 Ultra-Heavy Duty Nylon Caster, Capacity 1T~2T, Plate swivel with ball track and 30204 bearing
Housing: SUS304, 12/10mm
Wheel bearrings: 6204 double bearings
Wheel types: Solid nylon, 85±3 Shore D Temperature range: -40℃ ~ 120℃
Housing: SUS304, 12/10mm
Wheel bearrings: 6204 double bearings
Wheel types: Solid nylon, 85±3 Shore D Temperature range: -40℃ ~ 120℃

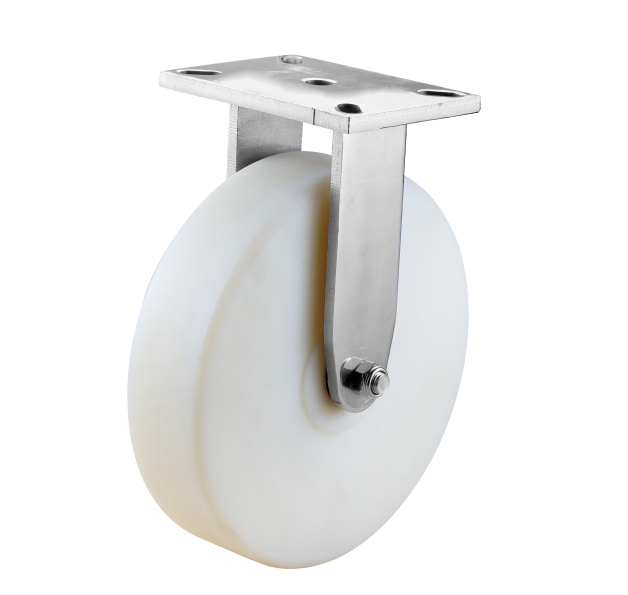

Plate rigid caster
|
ART.NO..
|
|
|
|
|
|
|
|
|
Tread |
Frame |
Bearing |
|
Wheel Dia(mm)
|
Tread Width(mm) | Hounting Height(mm) | Top plate(mm) | Spacing(mm) | Radius(mm) | Housing Width(mm) | Capacity(kg) | ||||
| HD-DP18-12575WSUS304 | 5"125mm | 75 | 185 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 1000 | 实心尼龙 Nylon | 双轴 6204 | |
| HD-DP18-15075WSUS304 | 6"150mm | 75 | 210 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 1000 | 实心尼龙 Nylon | 双轴 6204 | |
| HD-DP18-20075WSUS304 | 8"200mm | 75 | 260 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 1500 | 实心尼龙 Nylon |
双轴 6204 |
|
| HD-DP18-25075WSUS304 | 10"250mm | 75 | 311 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 1500 | 实心尼龙 Nylon | 双轴 6204 | |
| HD-DP18-30075WSUS304 | 12"300mm | 75 | 357.5 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 2000 | 实心尼龙 Nylon | 双轴 6204 | |
