Ultra-Heavy 5-12-inch C81 Series
C81 Series
SUS304 Ultra-Heavy Duty Caster for large equipments' moving, Capacity 1.5T~8T, Plate swivel with ball track and plane bearing
Housing: SUS304, 14/12mm
Wheel bearrings: 6205 double bearings
Wheel types: Forged steel wheel or SUS304 wheel
Temperature range: -60℃ ~ 250℃
Housing: SUS304, 14/12mm
Wheel bearrings: 6205 double bearings
Wheel types: Forged steel wheel or SUS304 wheel
Temperature range: -60℃ ~ 250℃

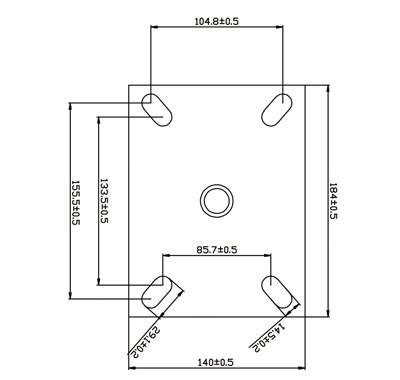

Plate swivel caster
|
ART.NO..
|
|
|
|
|
|
|
|
|
Tread |
Frame |
Bearing |
|
Wheel Dia(mm)
|
Offset(mm) | Hounting Height(mm) | Top plate(mm) | Spacing(mm) | Radius(mm) | Housing Width(mm) | Capacity(kg) | ||||
| HD-WPD8-12575SSUS304 | 5"125*75mm | 62 | 185 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 1500 | Forged steel bar Or SUS304 Bar | Double ball 6205 | |
| HD-WPD8-15075SSUS304 | 6"150*75mm | 62 | 210 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 2500 | Forged steel bar Or SUS304 Bar | Double ball 6205 | |
| HD-WPD8-20075SSUS304 | 8"200*75mm | 65 | 260 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 4000 | Forged steel bar Or SUS304 Bar |
Double ball 6205 |
|
| HD-WPD8-25075SSUS304 | 10"250*75mm | 65 | 311 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 6000 | Forged steel bar Or SUS304 Bar | Double ball 6205 | |
| HD-WPD8-30075SSUS304 | 12”300*75mm | 77.5 | 357.5 | 184*140*12 | 144.5*95 | 14.5 | 10.0 | 8000 | Forged steel bar Or SUS304 Bar | Double ball 6205 | |
